Performance

While using unit tests to glean performance data for the various implementations is not the most scientifically empirical it does provide some interesting insight.

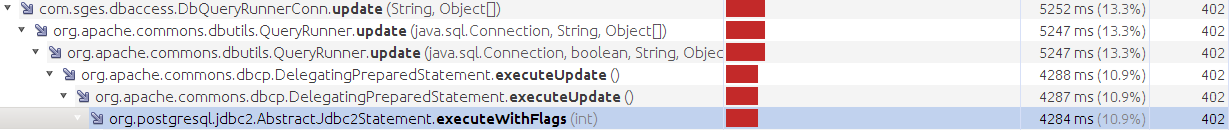

  • You will not notice much difference between the various implementations since most of the latency is caused by the database itself. Examine the profiling results below. You will note that the largest portion of execution time is spent in the actual JDBC driver code.
  • DbBeanMapper (using DbJdbcConn) bean mapping was four times faster than JdbcTemplate. You should consider this in applications where you are processing larger amounts of beans.

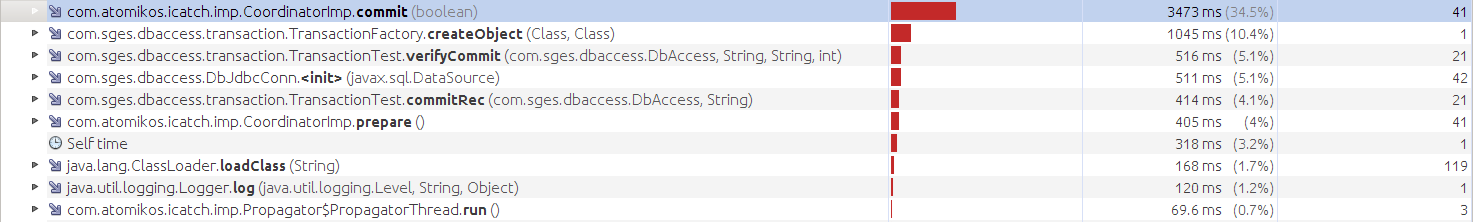

  • Atomikos JTA transactions are 9 times slower than standard Connection based transactions. You have to weigh the advantages of using thread based JTA which can work across multiple connections (the nature of using a DataSource and closing the Connection after each operation) or using a single Connection. For batch operations the cost is too high to use JTA in my opinion. See the profiling results below.
  1. Tests using DBCP DataSource. I prime each test to eliminate any lazy loading noise. Spring's JdbcTemplate required the most overhead, but this should not be cause for concern as you will see in the subsequent tests.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbQueryRunnerConn 27 ms
    DbJdbcConn 28 ms
    DbPersist 31 ms
    DbJdbcDs 41 ms
    DbQueryRunnerDs 52 ms
    DbJdbcTemplate 234 ms
  2. Tests using DBCP DataSource. Average using 1000 iterations with parameter markers.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbJdbcConn 26 ms
    DbPersist 27 ms
    DbJdbcTemplate 30 ms
    DbJdbcDs 31 ms
    DbQueryRunnerConn 31 ms
    DbQueryRunnerDs 33 ms
  3. Tests using DBCP DataSource. Average using 1000 iterations with named parameters.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbJdbcTemplate 27 ms
    DbJdbcConn 27 ms
    DbQueryRunnerConn 29 ms
    DbJdbcDs 29 ms
    DbPersist 31 ms
    DbQueryRunnerDs 32 ms
  4. Tests using DBCP DataSource. Average using 1000 iterations batch of 3 inserts with parameter markers.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbJdbcConn 16 ms
    DbQueryRunnerDs 17 ms
    DbPersist 17 ms
    DbQueryRunnerConn 18 ms
    DbJdbcDs 18 ms
    DbJdbcTemplate 18 ms
  5. Tests using DBCP DataSource. Average using 1000 iterations batch of 3 inserts with named parameters.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbJdbcDs 17 ms
    DbJdbcTemplate 17 ms
    DbQueryRunnerDs 17 ms
    DbQueryRunnerConn 17 ms
    DbJdbcConn 18 ms
    DbPersist 18 ms
  6. Tests using DBCP DataSource. Total time using 50000 records mapped to a bean list.
    com.codeferm.dbaccess.dbcp.DbcpTest
    DbJdbcConn 1543 ms
    DbPersist 1921 ms
    DbQueryRunnerConn 2053 ms
    DbQueryRunnerDs 2781 ms
    DbJdbcDs 3375 ms
    DbJdbcTemplate 6321 ms
  7. Tests using AtomikosDataSourceBean DataSource. Average using 1000 iterations of commits.
    com.codeferm.dbaccess.transaction.TransactionTest
    DbQueryRunnerConn 156 ms
    DbPersist 160 ms
    DbJdbcDs 160 ms
    DbJdbcTemplate 162 ms
    DbJdbcConn 163 ms
    DbQueryRunnerDs 163 ms
  8. Tests using AtomikosDataSourceBean DataSource. Average using 1000 iterations of rollbacks.
    com.codeferm.dbaccess.transaction.TransactionTest
    DbPersist 76 ms
    DbQueryRunnerConn 81 ms
    DbJdbcTemplate 81 ms
    DbQueryRunnerDs 84 ms
    DbJdbcConn 87 ms
    DbJdbcDs 88 ms
  9. Tests using DBCP DataSource. Average using 1000 iterations of commits.
    com.codeferm.dbaccess.transaction.TransactionTest
    DbQueryRunnerConn 17 ms
    DbJdbcConn 19 ms
  10. Tests using DBCP DataSource. Average using 1000 iterations of rollbacks.
    com.codeferm.dbaccess.transaction.TransactionTest
    DbJdbcConn 4 ms
    DbQueryRunnerConn 5 ms
